预测管道、调优和自动化机器学习#

本 notebook 介绍如何使用 sktime 进行时间序列预测的管道构建和调优（网格搜索）

[1]:

import warnings

import numpy as np

warnings.filterwarnings("ignore")

1. 在预测中使用外生数据 `X`#

外生数据 X 是一个 pd.DataFrame，其索引与 y 相同。在 fit 和 predict 方法中，可以可选地将其提供给预测器。如果在 fit 中提供了 X，则在 predict 中也必须提供，这意味着在预测时必须提供 X 的未来值。

[ ]:

from sktime.datasets import load_longley
from sktime.forecasting.base import ForecastingHorizon
from sktime.split import temporal_train_test_split
from sktime.utils.plotting import plot_series

y, X = load_longley()
y_train, y_test, X_train, X_test = temporal_train_test_split(y=y, X=X, test_size=6)
fh = ForecastingHorizon(y_test.index, is_relative=False)

[3]:

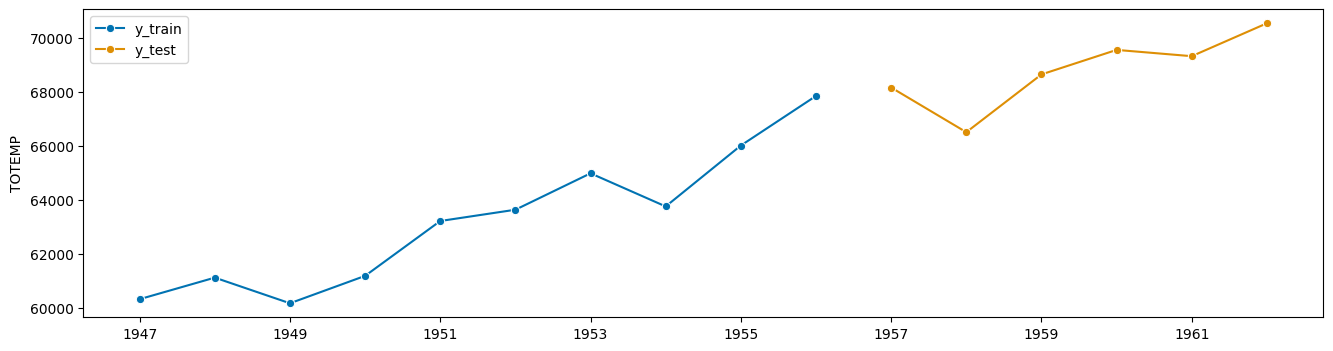

plot_series(y_train, y_test, labels=["y_train", "y_test"]);

../_images/examples_03b_forecasting_transformers_pipelines_tuning_4_0.png

[4]:

X.head()

[4]:

	GNPDEFL	GNP	UNEMP	ARMED	POP
周期
1947	83.0	234289.0	2356.0	1590.0	107608.0
1948	88.5	259426.0	2325.0	1456.0	108632.0
1949	88.2	258054.0	3682.0	1616.0	109773.0
1950	89.5	284599.0	3351.0	1650.0	110929.0
1951	96.2	328975.0	2099.0	3099.0	112075.0

[5]:

from sktime.forecasting.arima import AutoARIMA

forecaster = AutoARIMA(suppress_warnings=True)
forecaster.fit(y=y_train, X=X_train)
y_pred = forecaster.predict(fh=fh, X=X_test)

如果我们没有未来的 X 值来调用 predict(...)，我们可以通过 ForecastX 组合类单独预测 X。该类接收两个独立的预测器，一个用于预测 y，另一个用于预测 X。这意味着当我们调用 predict(...) 时，首先预测 X，然后将其提供给 y 预测器来预测 y。

[6]:

from sktime.forecasting.compose import ForecastX
from sktime.forecasting.var import VAR

forecaster_X = ForecastX(
    forecaster_y=AutoARIMA(sp=1, suppress_warnings=True),
    forecaster_X=VAR(),
)
forecaster_X.fit(y=y, X=X, fh=fh)
# now in predict() we don't need to pass X
y_pred = forecaster_X.predict(fh=fh)

2. 简单的预测管道#

我们已经看到：管道将多个估计器组合成一个。

预测器方法有两个关键数据参数，都是时间序列

内生数据，y
外生数据 X

两者都存在管道

内生数据上的管道 Transformer - `y` 参数#

不使用管道对象的 Transformer 序列

[7]:

from sktime.forecasting.arima import AutoARIMA
from sktime.transformations.series.detrend import Deseasonalizer, Detrender

detrender = Detrender()
deseasonalizer = Deseasonalizer()
forecaster = AutoARIMA(sp=1, suppress_warnings=True)

# fit_transform
y_train_1 = detrender.fit_transform(y_train)
y_train_2 = deseasonalizer.fit_transform(y_train_1)

# fit
forecaster.fit(y_train_2)

# predidct
y_pred_2 = forecaster.predict(fh)

# inverse_transform
y_pred_1 = detrender.inverse_transform(y_pred_2)
y_pred_isolated = deseasonalizer.inverse_transform(y_pred_1)

作为一个端到端预测器，使用 TransformedTargetForecaster 类

[8]:

from sktime.forecasting.compose import TransformedTargetForecaster

pipe_y = TransformedTargetForecaster(
    steps=[
        ("detrend", Detrender()),
        ("deseasonalize", Deseasonalizer()),
        ("forecaster", AutoARIMA(sp=1, suppress_warnings=True)),
    ]
)
pipe_y.fit(y=y_train)
y_pred_pipe = pipe_y.predict(fh=fh)

from pandas.testing import assert_series_equal

# make sure that outputs are the same
assert_series_equal(y_pred_pipe, y_pred_isolated)

外生数据上的管道 Transformer - `X` 参数#

在传递给预测器之前，将 Transformer 应用于 X 参数。

此处：先进行 Detrender，然后进行 Deseasonalizer，然后传递给 AutoARIMA 的 X

[9]:

from sktime.forecasting.compose import ForecastingPipeline

pipe_X = ForecastingPipeline(
    steps=[
        ("detrend", Detrender()),
        ("deseasonalize", Deseasonalizer()),
        ("forecaster", AutoARIMA(sp=1, suppress_warnings=True)),
    ]
)
pipe_X.fit(y=y_train, X=X_train)
y_pred = pipe_X.predict(fh=fh, X=X_test)

通过嵌套在 `y` 和 `X` 数据上构建管道#

[10]:

pipe_y = TransformedTargetForecaster(
    steps=[
        ("detrend", Detrender()),
        ("deseasonalize", Deseasonalizer()),
        ("forecaster", AutoARIMA(sp=1, suppress_warnings=True)),
    ]
)

pipe_X = ForecastingPipeline(
    steps=[
        ("detrend", Detrender()),
        ("deseasonalize", Deseasonalizer()),
        ("forecaster", pipe_y),
    ]
)
pipe_X.fit(y=y_train, X=X_train)
y_pred = pipe_X.predict(fh=fh, X=X_test)

sktime 为估计器提供了 dunder 方法，以便将它们链式组合成管道和其他组合。要创建管道，我们可以使用 * 创建 TransformedTargetForecaster，使用 ** 创建 ForecastingPipeline。更多 dunder 方法在本 notebook 结尾的附录部分提供。

[11]:

pipe_y = Detrender() * Deseasonalizer() * AutoARIMA()
pipe_y

[11]:

TransformedTargetForecaster(steps=[Detrender(), Deseasonalizer(), AutoARIMA()])

在 Jupyter 环境中，请重新运行此单元格以显示 HTML 表示或信任此 notebook。
在 GitHub 上，HTML 表示无法渲染，请尝试使用 nbviewer.org 加载此页面。

[12]:

pipe_X = Detrender() ** Deseasonalizer() ** AutoARIMA()
pipe_X

[12]:

ForecastingPipeline(steps=[Detrender(), Deseasonalizer(), AutoARIMA()])

在 Jupyter 环境中，请重新运行此单元格以显示 HTML 表示或信任此 notebook。
在 GitHub 上，HTML 表示无法渲染，请尝试使用 nbviewer.org 加载此页面。

使用 dunder 方法进行嵌套，同时处理 X 和 y

[13]:

pipe_nested = (
    Detrender() * Deseasonalizer() * (Detrender() ** Deseasonalizer() ** AutoARIMA())
)

3. 调优#

时间序列交叉验证#

在 sktime 中，有三种不同类型的时间序列交叉验证分割器可用

SingleWindowSplitter，相当于单次训练集-测试集分割
SlidingWindowSplitter，使用滚动窗口方法，随着时间向前推进，“忘记”最老的观测值
ExpandingWindowSplitter，使用扩展窗口方法，随着时间向前推进，保留训练集中的所有观测值

[14]:

from sktime.datasets import load_shampoo_sales

y = load_shampoo_sales()
y_train, y_test = temporal_train_test_split(y=y, test_size=6)

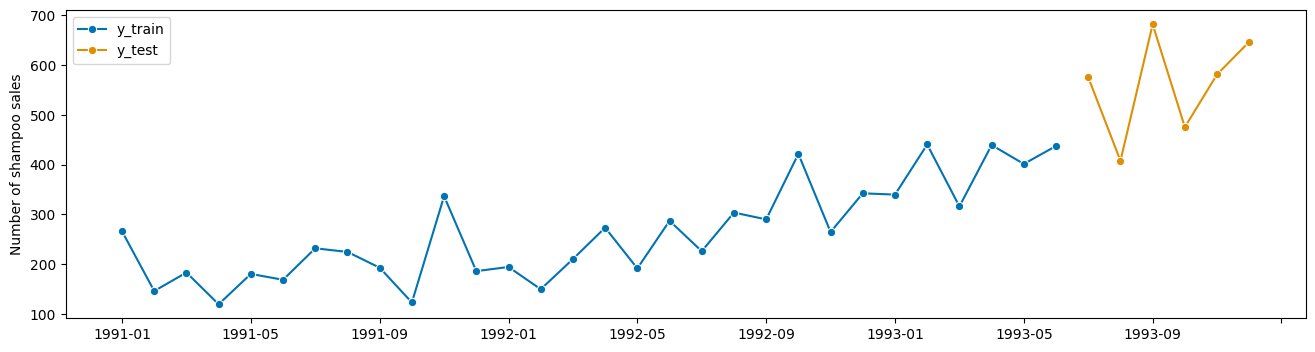

plot_series(y_train, y_test, labels=["y_train", "y_test"]);

../_images/examples_03b_forecasting_transformers_pipelines_tuning_25_0.png

[15]:

from sktime.forecasting.base import ForecastingHorizon
from sktime.split import (
    ExpandingWindowSplitter,
    SingleWindowSplitter,
    SlidingWindowSplitter,
)
from sktime.utils.plotting import plot_windows

fh = ForecastingHorizon(y_test.index, is_relative=False).to_relative(
    cutoff=y_train.index[-1]
)

[16]:

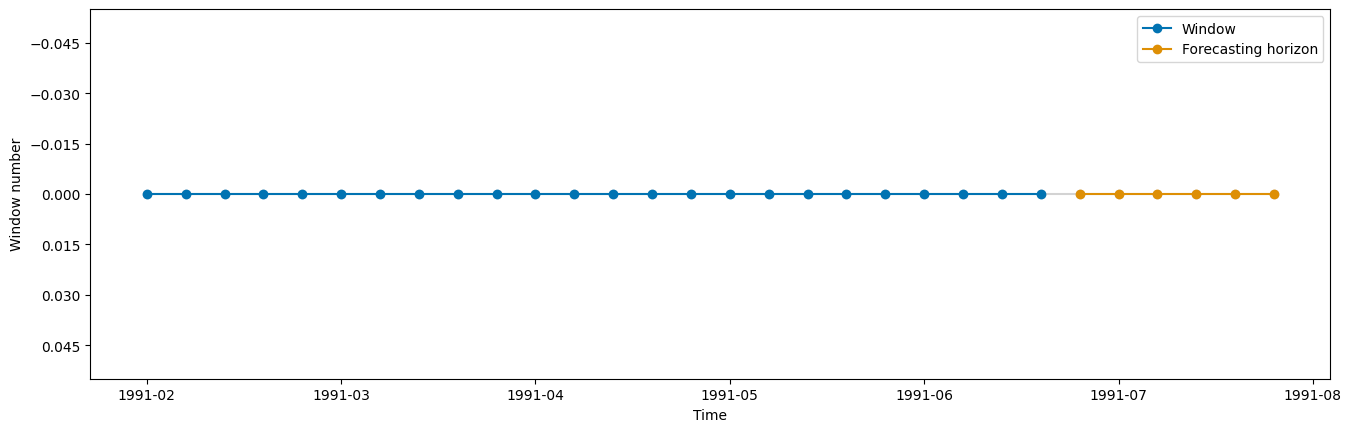

cv = SingleWindowSplitter(fh=fh, window_length=len(y_train) - 6)
plot_windows(cv=cv, y=y_train)

../_images/examples_03b_forecasting_transformers_pipelines_tuning_27_0.png

[17]:

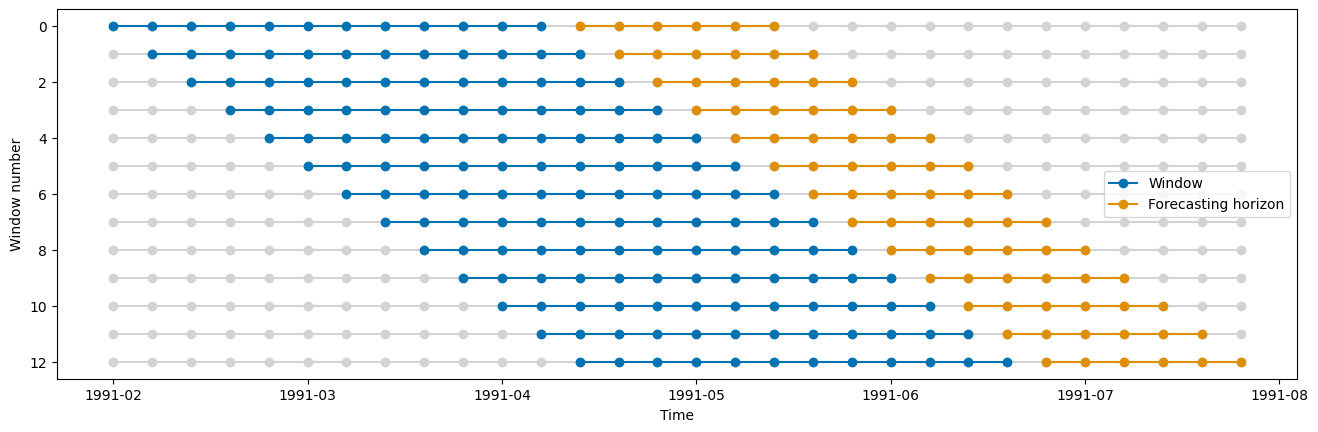

cv = SlidingWindowSplitter(fh=fh, window_length=12, step_length=1)
plot_windows(cv=cv, y=y_train)

../_images/examples_03b_forecasting_transformers_pipelines_tuning_28_0.png

[18]:

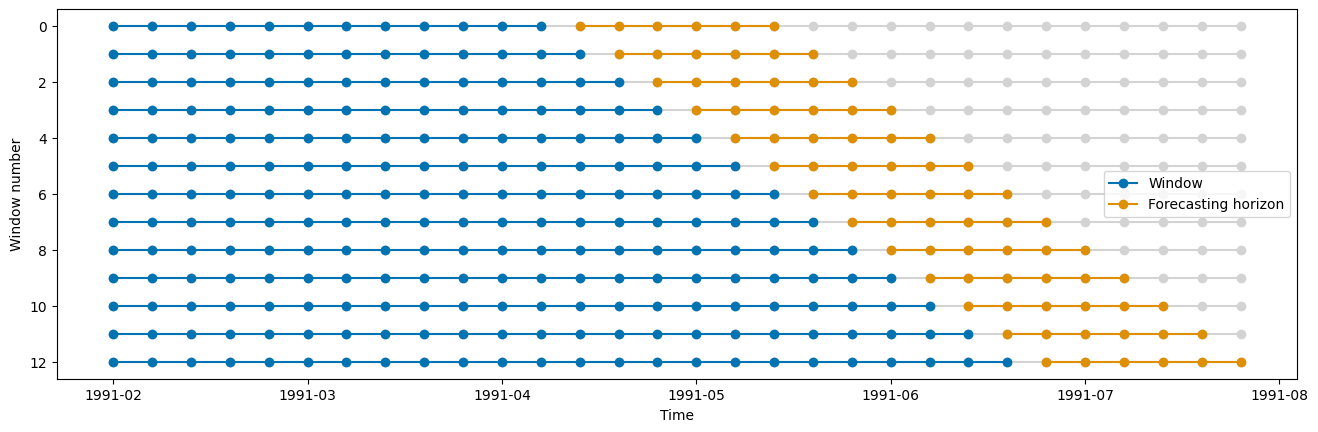

cv = ExpandingWindowSplitter(fh=fh, initial_window=12, step_length=1)
plot_windows(cv=cv, y=y_train)

../_images/examples_03b_forecasting_transformers_pipelines_tuning_29_0.png

[19]:

# get number of total splits (folds)
cv.get_n_splits(y=y_train)

[19]:

网格搜索#

在 sktime 中执行网格搜索的方式与 sklearn 类似，通过使用交叉验证来搜索最佳参数组合。

[20]:

from sktime.forecasting.exp_smoothing import ExponentialSmoothing
from sktime.forecasting.model_selection import ForecastingGridSearchCV
from sktime.performance_metrics.forecasting import MeanSquaredError

forecaster = ExponentialSmoothing()
param_grid = {
    "sp": [4, 6, 12],
    "seasonal": ["add", "mul"],
    "trend": ["add", "mul"],
    "damped_trend": [True, False],
}
gscv = ForecastingGridSearchCV(
    forecaster=forecaster,
    param_grid=param_grid,
    cv=cv,
    verbose=1,
    scoring=MeanSquaredError(square_root=True),
)
gscv.fit(y_train)
y_pred = gscv.predict(fh=fh)

Fitting 13 folds for each of 24 candidates, totalling 312 fits

[21]:

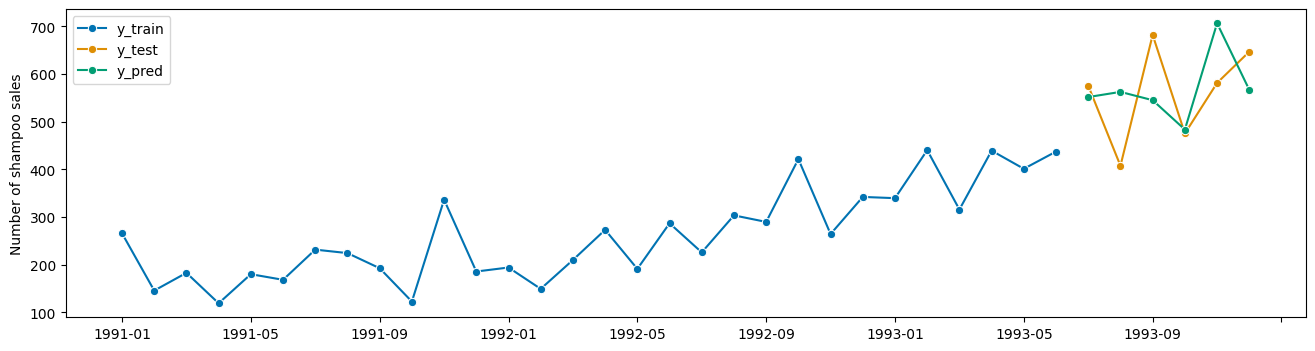

plot_series(y_train, y_test, y_pred, labels=["y_train", "y_test", "y_pred"]);

../_images/examples_03b_forecasting_transformers_pipelines_tuning_33_0.png

[22]:

gscv.best_params_

[22]:

{'damped_trend': True, 'seasonal': 'add', 'sp': 12, 'trend': 'mul'}

[23]:

gscv.best_forecaster_

[23]:

ExponentialSmoothing(damped_trend=True, seasonal='add', sp=12, trend='mul')

在 Jupyter 环境中，请重新运行此单元格以显示 HTML 表示或信任此 notebook。
在 GitHub 上，HTML 表示无法渲染，请尝试使用 nbviewer.org 加载此页面。

[24]:

gscv.cv_results_.head()

[24]:

	mean_test_MeanSquaredError	mean_fit_time	mean_pred_time	params	rank_test_MeanSquaredError
0	98.635359	0.126247	0.004085	{'damped_trend': True, 'seasonal': 'add', 'sp'...	7.0
1	98.327241	0.137226	0.004455	{'damped_trend': True, 'seasonal': 'add', 'sp'...	6.0
2	104.567201	0.127894	0.004397	{'damped_trend': True, 'seasonal': 'add', 'sp'...	13.0
3	112.555601	0.137103	0.004005	{'damped_trend': True, 'seasonal': 'add', 'sp'...	16.0
4	147.065358	0.107994	0.003920	{'damped_trend': True, 'seasonal': 'add', 'sp'...	22.0

使用管道进行网格搜索#

对于管道等组合结构的参数调优，我们可以使用 scikit-learn 中已知的 <estimator>__<parameter> 语法。对于多层嵌套，我们可以使用相同的语法并带有两个下划线，例如 forecaster__transformer__parameter。

[25]:

from sklearn.preprocessing import MinMaxScaler, PowerTransformer, RobustScaler

from sktime.forecasting.compose import TransformedTargetForecaster
from sktime.transformations.series.adapt import TabularToSeriesAdaptor
from sktime.transformations.series.detrend import Deseasonalizer, Detrender

forecaster = TransformedTargetForecaster(
    steps=[
        ("detrender", Detrender()),
        ("deseasonalizer", Deseasonalizer()),
        ("minmax", TabularToSeriesAdaptor(MinMaxScaler((1, 10)))),
        ("power", TabularToSeriesAdaptor(PowerTransformer())),
        ("scaler", TabularToSeriesAdaptor(RobustScaler())),
        ("forecaster", ExponentialSmoothing()),
    ]
)

# using dunder notation to access inner objects/params as in sklearn
param_grid = {
    # deseasonalizer
    "deseasonalizer__model": ["multiplicative", "additive"],
    # power
    "power__transformer__method": ["yeo-johnson", "box-cox"],
    "power__transformer__standardize": [True, False],
    # forecaster
    "forecaster__sp": [4, 6, 12],
    "forecaster__seasonal": ["add", "mul"],
    "forecaster__trend": ["add", "mul"],
    "forecaster__damped_trend": [True, False],
}

gscv = ForecastingGridSearchCV(
    forecaster=forecaster,
    param_grid=param_grid,
    cv=cv,
    verbose=1,
    scoring=MeanSquaredError(square_root=True),  # set custom scoring function
)
gscv.fit(y_train)
y_pred = gscv.predict(fh=fh)

Fitting 13 folds for each of 192 candidates, totalling 2496 fits

[26]:

gscv.best_params_

[26]:

{'deseasonalizer__model': 'additive',
 'forecaster__damped_trend': False,
 'forecaster__seasonal': 'add',
 'forecaster__sp': 4,
 'forecaster__trend': 'add',
 'power__transformer__method': 'yeo-johnson',
 'power__transformer__standardize': False}

模型选择#

有三种方法可以从多个模型中选择一个模型

ForecastingGridSearchCV
MultiplexForecaster
relative_loss 或 RelativeLoss

1) `ForecastingGridSearchCV`#

我们可以使用 ForecastingGridSearchCV 来拟合多个预测器，并使用与 sklearn 中等价的表示法找到最佳预测器。我们可以使用 param_grid: List[Dict]，或者在网格中直接列出预测器：forecaster": [NaiveForecaster(), STLForecaster()]。这样做同时调优其他参数的优势在于，我们可以使用与其他参数相同的交叉验证来找到整体最佳的预测器和参数。

[27]:

from sktime.forecasting.naive import NaiveForecaster
from sktime.forecasting.theta import ThetaForecaster
from sktime.forecasting.trend import STLForecaster

forecaster = TransformedTargetForecaster(
    steps=[
        ("detrender", Detrender()),
        ("deseasonalizer", Deseasonalizer()),
        ("scaler", TabularToSeriesAdaptor(RobustScaler())),
        ("minmax2", TabularToSeriesAdaptor(MinMaxScaler((1, 10)))),
        ("forecaster", NaiveForecaster()),
    ]
)

gscv = ForecastingGridSearchCV(
    forecaster=forecaster,
    param_grid=[
        {
            "scaler__transformer__with_scaling": [True, False],
            "forecaster": [NaiveForecaster()],
            "forecaster__strategy": ["drift", "last", "mean"],
            "forecaster__sp": [4, 6, 12],
        },
        {
            "scaler__transformer__with_scaling": [True, False],
            "forecaster": [STLForecaster(), ThetaForecaster()],
            "forecaster__sp": [4, 6, 12],
        },
    ],
    cv=cv,
)
gscv.fit(y)
gscv.best_params_

[27]:

{'forecaster': NaiveForecaster(sp=4),
 'forecaster__sp': 4,
 'forecaster__strategy': 'last',
 'scaler__transformer__with_scaling': True}

2) `MultiplexForecaster`#

我们可以使用 MultiplexForecaster 来比较不同预测器的性能。如果我们要比较已经单独调优和拟合过的不同预测器的性能，这种方法可能会很有用。MultiplexForecaster 只是一个预测器组合，它提供了一个可以通过网格搜索调优的参数 selected_forecaster: List[str]。预测器的其他参数不会被调优。

[28]:

from sktime.forecasting.compose import MultiplexForecaster

forecaster = MultiplexForecaster(
    forecasters=[
        ("naive", NaiveForecaster()),
        ("stl", STLForecaster()),
        ("theta", ThetaForecaster()),
    ]
)
gscv = ForecastingGridSearchCV(
    forecaster=forecaster,
    param_grid={"selected_forecaster": ["naive", "stl", "theta"]},
    cv=cv,
)
gscv.fit(y)
gscv.best_params_

[28]:

{'selected_forecaster': 'theta'}

3) `relative_loss` 或 `RelativeLoss`#

我们可以通过相对损失计算来比较给定测试数据上的两个模型。但是，与上述模型选择方法 1) 和 2) 相比，这不会进行任何交叉验证。

相对损失函数将预测性能指标应用于一组预测和基准预测，并报告预测指标与基准预测指标的比率。相对损失输出是非负浮点数。最佳值为 0.0。相对损失函数默认使用 mean_absolute_error 作为误差指标。如果分数 >1，则作为 y_pred 给出的预测比作为 y_pred_benchmark 给出的基准预测更差。如果我们想定制相对损失，我们可以使用 RelativeLoss 评分器类，例如提供自定义损失函数。

[29]:

from sktime.performance_metrics.forecasting import mean_squared_error, relative_loss

relative_loss(y_true=y_test, y_pred=y_pred_1, y_pred_benchmark=y_pred_2)

[29]:

123.00771294252276

[30]:

from sktime.performance_metrics.forecasting import RelativeLoss

relative_mse = RelativeLoss(relative_loss_function=mean_squared_error)
relative_mse(y_true=y_test, y_pred=y_pred_1, y_pred_benchmark=y_pred_2)

[30]:

14720.015012346896

将管道结构作为超参数进行调优#

管道结构的选择影响性能

sktime 允许通过结构组合器暴露这些选择

在转换/预测之间切换：MultiplexTransformer, MultiplexForecaster
Transformer 开/关：OptionalPassthrough
Transformer 序列：Permute

与管道和 FeatureUnion 结合，以实现丰富的结构空间

Transformer 组合#

给定四种不同的 Transformer，我们想知道哪种组合能获得最佳误差。总共有 4² = 16 种不同的组合。我们可以使用 GridSearchCV 来找到最佳组合。

[31]:

steps = [
    ("detrender", Detrender()),
    ("deseasonalizer", Deseasonalizer()),
    ("power", TabularToSeriesAdaptor(PowerTransformer())),
    ("scaler", TabularToSeriesAdaptor(RobustScaler())),
    ("forecaster", ExponentialSmoothing()),
]

在 sktime 中，有一个名为 OptionalPassthrough() 的 Transformer 组合，它将一个 Transformer 作为参数，并有一个参数 passthrough: bool。将 passthrough=True 设置为 True 将对给定数据返回恒等变换。将 passthrough=False 设置为 False 将对数据应用给定的内部 Transformer。

[32]:

from sktime.transformations.compose import OptionalPassthrough

transformer = OptionalPassthrough(transformer=Detrender(), passthrough=True)
transformer.fit_transform(y_train).head()

[32]:

1991-01    266.0
1991-02    145.9
1991-03    183.1
1991-04    119.3
1991-05    180.3
Freq: M, Name: Number of shampoo sales, dtype: float64

[33]:

y_train.head()

[33]:

1991-01    266.0
1991-02    145.9
1991-03    183.1
1991-04    119.3
1991-05    180.3
Freq: M, Name: Number of shampoo sales, dtype: float64

[34]:

transformer = OptionalPassthrough(transformer=Detrender(), passthrough=False)
transformer.fit_transform(y_train).head()

[34]:

1991-01    130.376344
1991-02      1.503263
1991-03     29.930182
1991-04    -42.642900
1991-05      9.584019
Freq: M, dtype: float64

[35]:

forecaster = TransformedTargetForecaster(
    steps=[
        ("detrender", OptionalPassthrough(Detrender())),
        ("deseasonalizer", OptionalPassthrough(Deseasonalizer())),
        ("power", OptionalPassthrough(TabularToSeriesAdaptor(PowerTransformer()))),
        ("scaler", OptionalPassthrough(TabularToSeriesAdaptor(RobustScaler()))),
        ("forecaster", ExponentialSmoothing()),
    ]
)

param_grid = {
    "detrender__passthrough": [True, False],
    "deseasonalizer__passthrough": [True, False],
    "power__passthrough": [True, False],
    "scaler__passthrough": [True, False],
}

gscv = ForecastingGridSearchCV(
    forecaster=forecaster,
    param_grid=param_grid,
    cv=cv,
    verbose=1,
    scoring=MeanSquaredError(square_root=True),
)
gscv.fit(y_train)

Fitting 13 folds for each of 16 candidates, totalling 208 fits

[35]:

ForecastingGridSearchCV(cv=ExpandingWindowSplitter(fh=ForecastingHorizon([1, 2, 3, 4, 5, 6], dtype='int64', is_relative=True),
                                                   initial_window=12),
                        forecaster=TransformedTargetForecaster(steps=[('detrender',
                                                                       OptionalPassthrough(transformer=Detrender())),
                                                                      ('deseasonalizer',
                                                                       OptionalPassthrough(transformer=Deseasonalizer())),
                                                                      ('power',
                                                                       OptionalPassthrough(transform...
                                                                       OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                                                      ('forecaster',
                                                                       ExponentialSmoothing())]),
                        n_jobs=-1,
                        param_grid={'deseasonalizer__passthrough': [True,
                                                                    False],
                                    'detrender__passthrough': [True, False],
                                    'power__passthrough': [True, False],
                                    'scaler__passthrough': [True, False]},
                        scoring=MeanSquaredError(square_root=True), verbose=1)

在 Jupyter 环境中，请重新运行此单元格以显示 HTML 表示或信任此 notebook。
在 GitHub 上，HTML 表示无法渲染，请尝试使用 nbviewer.org 加载此页面。

ForecastingGridSearchCV

ForecastingGridSearchCV(cv=ExpandingWindowSplitter(fh=ForecastingHorizon([1, 2, 3, 4, 5, 6], dtype='int64', is_relative=True),
                                                   initial_window=12),
                        forecaster=TransformedTargetForecaster(steps=[('detrender',
                                                                       OptionalPassthrough(transformer=Detrender())),
                                                                      ('deseasonalizer',
                                                                       OptionalPassthrough(transformer=Deseasonalizer())),
                                                                      ('power',
                                                                       OptionalPassthrough(transform...
                                                                       OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                                                      ('forecaster',
                                                                       ExponentialSmoothing())]),
                        n_jobs=-1,
                        param_grid={'deseasonalizer__passthrough': [True,
                                                                    False],
                                    'detrender__passthrough': [True, False],
                                    'power__passthrough': [True, False],
                                    'scaler__passthrough': [True, False]},
                        scoring=MeanSquaredError(square_root=True), verbose=1)

预测器: TransformedTargetForecaster

TransformedTargetForecaster(steps=[('detrender',
                                    OptionalPassthrough(transformer=Detrender())),
                                   ('deseasonalizer',
                                    OptionalPassthrough(transformer=Deseasonalizer())),
                                   ('power',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=PowerTransformer()))),
                                   ('scaler',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                   ('forecaster', ExponentialSmoothing())])

TransformedTargetForecaster

TransformedTargetForecaster(steps=[('detrender',
                                    OptionalPassthrough(transformer=Detrender())),
                                   ('deseasonalizer',
                                    OptionalPassthrough(transformer=Deseasonalizer())),
                                   ('power',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=PowerTransformer()))),
                                   ('scaler',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                   ('forecaster', ExponentialSmoothing())])

表现最佳的 Transformer 组合

[36]:

gscv.best_params_

[36]:

{'deseasonalizer__passthrough': True,
 'detrender__passthrough': False,
 'power__passthrough': True,
 'scaler__passthrough': True}

表现最差的 Transformer 组合

[37]:

# worst params
gscv.cv_results_.sort_values(by="mean_test_MeanSquaredError", ascending=True).iloc[-1][
    "params"
]

[37]:

{'deseasonalizer__passthrough': False,
 'detrender__passthrough': True,
 'power__passthrough': False,
 'scaler__passthrough': True}

Transformer 排列#

给定四种不同的 Transformer，我们想知道四种 Transformer 的哪种排列（顺序）能获得最佳误差。总共有 4! = 24 种不同的排列。我们可以使用 GridSearchCV 来找到最佳排列。

[38]:

from sktime.forecasting.compose import Permute

[39]:

forecaster = TransformedTargetForecaster(
    steps=[
        ("detrender", Detrender()),
        ("deseasonalizer", Deseasonalizer()),
        ("power", TabularToSeriesAdaptor(PowerTransformer())),
        ("scaler", TabularToSeriesAdaptor(RobustScaler())),
        ("forecaster", ExponentialSmoothing()),
    ]
)

param_grid = {
    "permutation": [
        ["detrender", "deseasonalizer", "power", "scaler", "forecaster"],
        ["power", "scaler", "detrender", "deseasonalizer", "forecaster"],
        ["scaler", "deseasonalizer", "power", "detrender", "forecaster"],
        ["deseasonalizer", "power", "scaler", "detrender", "forecaster"],
    ]
}
permuted = Permute(estimator=forecaster, permutation=None)

gscv = ForecastingGridSearchCV(
    forecaster=permuted,
    param_grid=param_grid,
    cv=cv,
    verbose=1,
    scoring=MeanSquaredError(square_root=True),
)

permuted = gscv.fit(y, fh=fh)

Fitting 19 folds for each of 4 candidates, totalling 76 fits

[40]:

permuted.cv_results_

[40]:

	mean_test_MeanSquaredError	mean_fit_time	mean_pred_time	params	rank_test_MeanSquaredError
0	104.529303	0.119823	0.032105	{'permutation': ['detrender', 'deseasonalizer'...	4.0
1	95.172818	0.118840	0.033758	{'permutation': ['power', 'scaler', 'detrender..."	1.5
2	95.243942	0.114363	0.033743	{'permutation': ['scaler', 'deseasonalizer', '...	3.0
3	95.172818	0.119377	0.030739	{'permutation': ['deseasonalizer', 'power', 's...	1.5

[41]:

gscv.best_params_

[41]:

{'permutation': ['power',
  'scaler',
  'detrender',
  'deseasonalizer',
  'forecaster']}

[42]:

# worst params
gscv.cv_results_.sort_values(by="mean_test_MeanSquaredError", ascending=True).iloc[-1][
    "params"
]

[42]:

{'permutation': ['detrender',
  'deseasonalizer',
  'power',
  'scaler',
  'forecaster']}

4. 综合应用：类似 AutoML 的管道和调优#

结合以上所有例子中的要素，我们可以构建一个接近通常所说的自动化机器学习 (AutoML) 的预测器。使用 AutoML，我们旨在尽可能自动化 ML 模型创建的许多步骤。sktime 中可用于此目的的主要组合包括

TransformedTargetForecaster
ForecastingPipeline
ForecastingGridSearchCV
OptionalPassthrough
Permute

单变量示例#

有关外生数据的示例，请参阅附录部分

[43]:

pipe_y = TransformedTargetForecaster(
    steps=[
        ("detrender", OptionalPassthrough(Detrender())),
        ("deseasonalizer", OptionalPassthrough(Deseasonalizer())),
        ("scaler", OptionalPassthrough(TabularToSeriesAdaptor(RobustScaler()))),
        ("forecaster", STLForecaster()),
    ]
)
permuted_y = Permute(estimator=pipe_y, permutation=None)

param_grid = {
    "permutation": [
        ["detrender", "deseasonalizer", "scaler", "forecaster"],
        ["scaler", "deseasonalizer", "detrender", "forecaster"],
    ],
    "estimator__detrender__passthrough": [True, False],
    "estimator__deseasonalizer__passthrough": [True, False],
    "estimator__scaler__passthrough": [True, False],
    "estimator__scaler__transformer__transformer__with_scaling": [True, False],
    "estimator__scaler__transformer__transformer__with_centering": [True, False],
    "estimator__forecaster__sp": [4, 8, 12],
}

gscv = ForecastingGridSearchCV(
    forecaster=permuted_y,
    param_grid=param_grid,
    cv=cv,
    verbose=1,
    scoring=MeanSquaredError(square_root=True),
    error_score="raise",
)

gscv.fit(y=y_train, fh=fh)

Fitting 13 folds for each of 192 candidates, totalling 2496 fits

[43]:

ForecastingGridSearchCV(cv=ExpandingWindowSplitter(fh=ForecastingHorizon([1, 2, 3, 4, 5, 6], dtype='int64', is_relative=True),
                                                   initial_window=12),
                        error_score='raise',
                        forecaster=Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                                                         OptionalPassthrough(transformer=Detrender())),
                                                                                        ('deseasonalizer',
                                                                                         OptionalPassthrough(transformer=Deseasonalizer())),...
                                    'estimator__scaler__passthrough': [True,
                                                                       False],
                                    'estimator__scaler__transformer__transformer__with_centering': [True,
                                                                                                    False],
                                    'estimator__scaler__transformer__transformer__with_scaling': [True,
                                                                                                  False],
                                    'permutation': [['detrender',
                                                     'deseasonalizer', 'scaler',
                                                     'forecaster'],
                                                    ['scaler', 'deseasonalizer',
                                                     'detrender',
                                                     'forecaster']]},
                        scoring=MeanSquaredError(square_root=True), verbose=1)

在 Jupyter 环境中，请重新运行此单元格以显示 HTML 表示或信任此 notebook。
在 GitHub 上，HTML 表示无法渲染，请尝试使用 nbviewer.org 加载此页面。

ForecastingGridSearchCV

ForecastingGridSearchCV(cv=ExpandingWindowSplitter(fh=ForecastingHorizon([1, 2, 3, 4, 5, 6], dtype='int64', is_relative=True),
                                                   initial_window=12),
                        error_score='raise',
                        forecaster=Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                                                         OptionalPassthrough(transformer=Detrender())),
                                                                                        ('deseasonalizer',
                                                                                         OptionalPassthrough(transformer=Deseasonalizer())),...
                                    'estimator__scaler__passthrough': [True,
                                                                       False],
                                    'estimator__scaler__transformer__transformer__with_centering': [True,
                                                                                                    False],
                                    'estimator__scaler__transformer__transformer__with_scaling': [True,
                                                                                                  False],
                                    'permutation': [['detrender',
                                                     'deseasonalizer', 'scaler',
                                                     'forecaster'],
                                                    ['scaler', 'deseasonalizer',
                                                     'detrender',
                                                     'forecaster']]},
                        scoring=MeanSquaredError(square_root=True), verbose=1)

预测器: Permute

Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                      OptionalPassthrough(transformer=Detrender())),
                                                     ('deseasonalizer',
                                                      OptionalPassthrough(transformer=Deseasonalizer())),
                                                     ('scaler',
                                                      OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                                     ('forecaster',
                                                      STLForecaster())]))

估计器: TransformedTargetForecaster

TransformedTargetForecaster(steps=[('detrender',
                                    OptionalPassthrough(transformer=Detrender())),
                                   ('deseasonalizer',
                                    OptionalPassthrough(transformer=Deseasonalizer())),
                                   ('scaler',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                   ('forecaster', STLForecaster())])

TransformedTargetForecaster

TransformedTargetForecaster(steps=[('detrender',
                                    OptionalPassthrough(transformer=Detrender())),
                                   ('deseasonalizer',
                                    OptionalPassthrough(transformer=Deseasonalizer())),
                                   ('scaler',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                   ('forecaster', STLForecaster())])

[44]:

gscv.cv_results_["mean_test_MeanSquaredError"].min()

[44]:

83.44136911735615

[45]:

gscv.cv_results_["mean_test_MeanSquaredError"].max()

[45]:

125.54124792614672

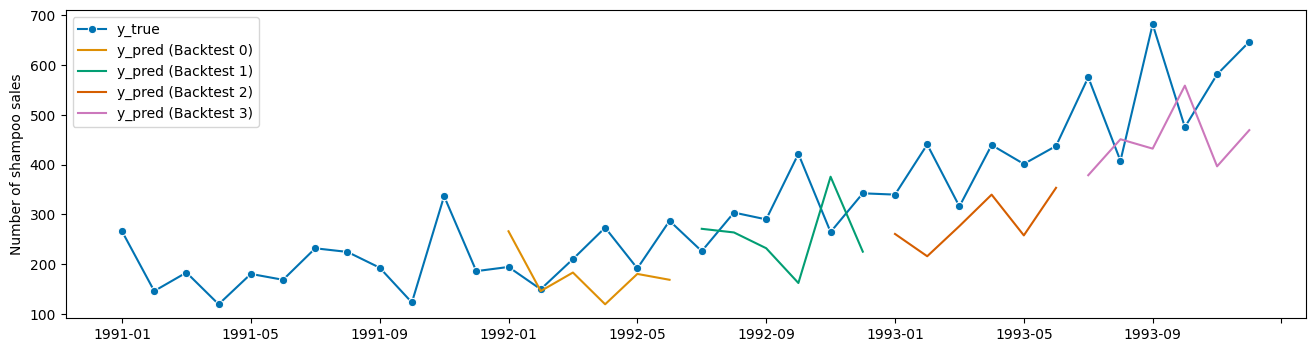

5. 模型回测#

拟合模型后，我们可以评估模型在过去的误差，这类似于交叉验证。为此，我们可以使用 evaluate 函数。这种方法通常也称为回测，因为我们想测试预测器在过去的性能。

[46]:

from sktime.forecasting.model_evaluation import evaluate

y = load_shampoo_sales()
results = evaluate(
    forecaster=STLForecaster(sp=12),
    y=y,
    cv=ExpandingWindowSplitter(fh=[1, 2, 3, 4, 5, 6], initial_window=12, step_length=6),
    scoring=MeanSquaredError(square_root=True),
    return_data=True,
)
results

[46]:

	test_MeanSquaredError	fit_time	pred_time	len_train_window	cutoff	y_train	y_test	y_pred
0	85.405220	0.008634	0.009597	12	1991-12	Period 1991-01 266.0 1991-02 145.9 1991-...	Period 1992-01 194.3 1992-02 149.5 1992-...	1992-01 266.0 1992-02 145.9 1992-03 1...
1	129.383456	0.010045	0.007728	18	1992-06	Period 1991-01 266.0 1991-02 145.9 1991-...	Period 1992-07 226.0 1992-08 303.6 1992-...	1992-07 270.953646 1992-08 263.653646 19...
2	126.393156	0.009373	0.008245	24	1992-12	Period 1991-01 266.0 1991-02 145.9 1991-...	Period 1993-01 339.7 1993-02 440.4 1993-...	1993-01 260.633333 1993-02 215.833333 19...
3	171.142305	0.012287	0.009526	30	1993-06	Period 1991-01 266.0 1991-02 145.9 1991-...	Period 1993-07 575.5 1993-08 407.6 1993-...	1993-07 378.659609 1993-08 450.927848 19...

[47]:

plot_series(
    y,
    results["y_pred"].iloc[0],
    results["y_pred"].iloc[1],
    results["y_pred"].iloc[2],
    results["y_pred"].iloc[3],
    markers=["o", "", "", "", ""],
    labels=["y_true"] + ["y_pred (Backtest " + str(x) + ")" for x in range(4)],
);

../_images/examples_03b_forecasting_transformers_pipelines_tuning_74_0.png

4.6 附录#

带有外生数据的类似 AutoML 管道#

[48]:

from sktime.datasets import load_macroeconomic

data = load_macroeconomic()
y = data["unemp"]
X = data.drop(columns=["unemp"])

y_train, y_test, X_train, X_test = temporal_train_test_split(y, X, test_size=40)

fh = ForecastingHorizon(np.arange(1, 41), is_relative=True)

[49]:

cv = ExpandingWindowSplitter(fh=fh, initial_window=80, step_length=4)
plot_windows(cv=cv, y=y_train)

../_images/examples_03b_forecasting_transformers_pipelines_tuning_78_0.png

[50]:

from sktime.datasets import load_macroeconomic
from sktime.forecasting.statsforecast import StatsForecastAutoARIMA
from sktime.split import temporal_train_test_split

data = load_macroeconomic()
y = data["unemp"]
X = data.drop(columns=["unemp"])

y_train, y_test, X_train, X_test = temporal_train_test_split(y, X, test_size=40)
fh = ForecastingHorizon(np.arange(1, 41), is_relative=True)

pipe_y = TransformedTargetForecaster(
    steps=[
        ("detrender", OptionalPassthrough(Detrender())),
        ("deseasonalizer", OptionalPassthrough(Deseasonalizer())),
        ("scaler", OptionalPassthrough(TabularToSeriesAdaptor(RobustScaler()))),
        ("forecaster", StatsForecastAutoARIMA(sp=4)),
    ]
)
permuted_y = Permute(pipe_y, permutation=None)

pipe_X = TransformedTargetForecaster(
    steps=[
        ("detrender", OptionalPassthrough(Detrender())),
        ("deseasonalizer", OptionalPassthrough(Deseasonalizer())),
        ("scaler", OptionalPassthrough(TabularToSeriesAdaptor(RobustScaler()))),
        ("forecaster", permuted_y),
    ]
)
permuted_X = Permute(pipe_X, permutation=None)

[51]:

gscv = ForecastingGridSearchCV(
    forecaster=permuted_X,
    param_grid={
        "estimator__forecaster__permutation": [
            ["detrender", "deseasonalizer", "scaler", "forecaster"],
            ["scaler", "detrender", "deseasonalizer", "forecaster"],
        ],
        "permutation": [
            ["detrender", "deseasonalizer", "scaler", "forecaster"],
            ["scaler", "detrender", "deseasonalizer", "forecaster"],
        ],
        "estimator__forecaster__estimator__scaler__passthrough": [True, False],
        "estimator__scaler__passthrough": [True, False],
    },
    cv=cv,
    error_score="raise",
    scoring=MeanSquaredError(square_root=True),
)

gscv.fit(y=y_train, X=X_train)

[51]:

ForecastingGridSearchCV(cv=ExpandingWindowSplitter(fh=ForecastingHorizon([ 1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
            18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34,
            35, 36, 37, 38, 39, 40],
           dtype='int64', is_relative=True),
                                                   initial_window=80,
                                                   step_length=4),
                        error_score='raise',
                        forecaster=Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                                                         Op...
                                    'estimator__forecaster__permutation': [['detrender',
                                                                            'deseasonalizer',
                                                                            'scaler',
                                                                            'forecaster'],
                                                                           ['scaler',
                                                                            'detrender',
                                                                            'deseasonalizer',
                                                                            'forecaster']],
                                    'estimator__scaler__passthrough': [True,
                                                                       False],
                                    'permutation': [['detrender',
                                                     'deseasonalizer', 'scaler',
                                                     'forecaster'],
                                                    ['scaler', 'detrender',
                                                     'deseasonalizer',
                                                     'forecaster']]},
                        scoring=MeanSquaredError(square_root=True))

在 Jupyter 环境中，请重新运行此单元格以显示 HTML 表示或信任此 notebook。
在 GitHub 上，HTML 表示无法渲染，请尝试使用 nbviewer.org 加载此页面。

ForecastingGridSearchCV

ForecastingGridSearchCV(cv=ExpandingWindowSplitter(fh=ForecastingHorizon([ 1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
            18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34,
            35, 36, 37, 38, 39, 40],
           dtype='int64', is_relative=True),
                                                   initial_window=80,
                                                   step_length=4),
                        error_score='raise',
                        forecaster=Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                                                         Op...
                                    'estimator__forecaster__permutation': [['detrender',
                                                                            'deseasonalizer',
                                                                            'scaler',
                                                                            'forecaster'],
                                                                           ['scaler',
                                                                            'detrender',
                                                                            'deseasonalizer',
                                                                            'forecaster']],
                                    'estimator__scaler__passthrough': [True,
                                                                       False],
                                    'permutation': [['detrender',
                                                     'deseasonalizer', 'scaler',
                                                     'forecaster'],
                                                    ['scaler', 'detrender',
                                                     'deseasonalizer',
                                                     'forecaster']]},
                        scoring=MeanSquaredError(square_root=True))

预测器: Permute

Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                      OptionalPassthrough(transformer=Detrender())),
                                                     ('deseasonalizer',
                                                      OptionalPassthrough(transformer=Deseasonalizer())),
                                                     ('scaler',
                                                      OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                                     ('forecaster',
                                                      Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                                                                            OptionalPassthrough(transformer=Detrender())),
                                                                                                           ('deseasonalizer',
                                                                                                            OptionalPassthrough(transformer=Deseasonalizer())),
                                                                                                           ('scaler',
                                                                                                            OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                                                                                           ('forecaster',
                                                                                                            StatsForecastAutoARIMA(sp=4))])))]))

估计器: TransformedTargetForecaster

TransformedTargetForecaster(steps=[('detrender',
                                    OptionalPassthrough(transformer=Detrender())),
                                   ('deseasonalizer',
                                    OptionalPassthrough(transformer=Deseasonalizer())),
                                   ('scaler',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                   ('forecaster',
                                    Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                                                          OptionalPassthrough(transformer=Detrender())),
                                                                                         ('deseasonalizer',
                                                                                          OptionalPassthrough(transformer=Deseasonalizer())),
                                                                                         ('scaler',
                                                                                          OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                                                                         ('forecaster',
                                                                                          StatsForecastAutoARIMA(sp=4))])))])

TransformedTargetForecaster

TransformedTargetForecaster(steps=[('detrender',
                                    OptionalPassthrough(transformer=Detrender())),
                                   ('deseasonalizer',
                                    OptionalPassthrough(transformer=Deseasonalizer())),
                                   ('scaler',
                                    OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                   ('forecaster',
                                    Permute(estimator=TransformedTargetForecaster(steps=[('detrender',
                                                                                          OptionalPassthrough(transformer=Detrender())),
                                                                                         ('deseasonalizer',
                                                                                          OptionalPassthrough(transformer=Deseasonalizer())),
                                                                                         ('scaler',
                                                                                          OptionalPassthrough(transformer=TabularToSeriesAdaptor(transformer=RobustScaler()))),
                                                                                         ('forecaster',
                                                                                          StatsForecastAutoARIMA(sp=4))])))])

[52]:

gscv.cv_results_["mean_test_MeanSquaredError"].min()

[52]:

1.9856591203311482

[53]:

gscv.cv_results_["mean_test_MeanSquaredError"].max()

[53]:

2.1207628182179863

[54]:

gscv.best_params_

[54]:

{'estimator__forecaster__estimator__scaler__passthrough': True,
 'estimator__forecaster__permutation': ['detrender',
  'deseasonalizer',
  'scaler',
  'forecaster'],
 'estimator__scaler__passthrough': False,
 'permutation': ['detrender', 'deseasonalizer', 'scaler', 'forecaster']}

[55]:

# worst params
gscv.cv_results_.sort_values(by="mean_test_MeanSquaredError", ascending=True).iloc[-1][
    "params"
]

[55]:

{'estimator__forecaster__estimator__scaler__passthrough': True,
 'estimator__forecaster__permutation': ['scaler',
  'detrender',
  'deseasonalizer',
  'forecaster'],
 'estimator__scaler__passthrough': True,
 'permutation': ['scaler', 'detrender', 'deseasonalizer', 'forecaster']}

致谢：notebook - 管道#

notebook 创建：aiwalter

预测器管道：fkiraly, aiwalter
Transformer 管道和组合器：fkiraly, mloning, miraep8
dunder 接口：fkiraly, miraep8

调优，AutoML：mloning, fkiraly, aiwalter
交叉验证和分割器：mloning, kkoralturk, khrapovs
预测指标：mloning, aiwalter, rnkuhns, fkiraly
回测，评估：aiwalter, mloning, fkiraly, topher-lo

使用 nbsphinx 生成。Jupyter notebook 可在此处找到：此处。

预测管道、调优和自动化机器学习#

1. 在预测中使用外生数据 X#

2. 简单的预测管道#

内生数据上的管道 Transformer - y 参数#

外生数据上的管道 Transformer - X 参数#

通过嵌套在 y 和 X 数据上构建管道#

3. 调优#

时间序列交叉验证#

网格搜索#

使用管道进行网格搜索#

模型选择#

1) ForecastingGridSearchCV#

2) MultiplexForecaster#

3) relative_loss 或 RelativeLoss#

将管道结构作为超参数进行调优#

Transformer 组合#

Transformer 排列#

4. 综合应用：类似 AutoML 的管道和调优#

单变量示例#

5. 模型回测#

4.6 附录#

带有外生数据的类似 AutoML 管道#

致谢：notebook - 管道#

1. 在预测中使用外生数据 `X`#

内生数据上的管道 Transformer - `y` 参数#

外生数据上的管道 Transformer - `X` 参数#

通过嵌套在 `y` 和 `X` 数据上构建管道#

1) `ForecastingGridSearchCV`#

2) `MultiplexForecaster`#

3) `relative_loss` 或 `RelativeLoss`#
